Speakman® traditional series combination emergency stations provide the highest level of performance in times of need.

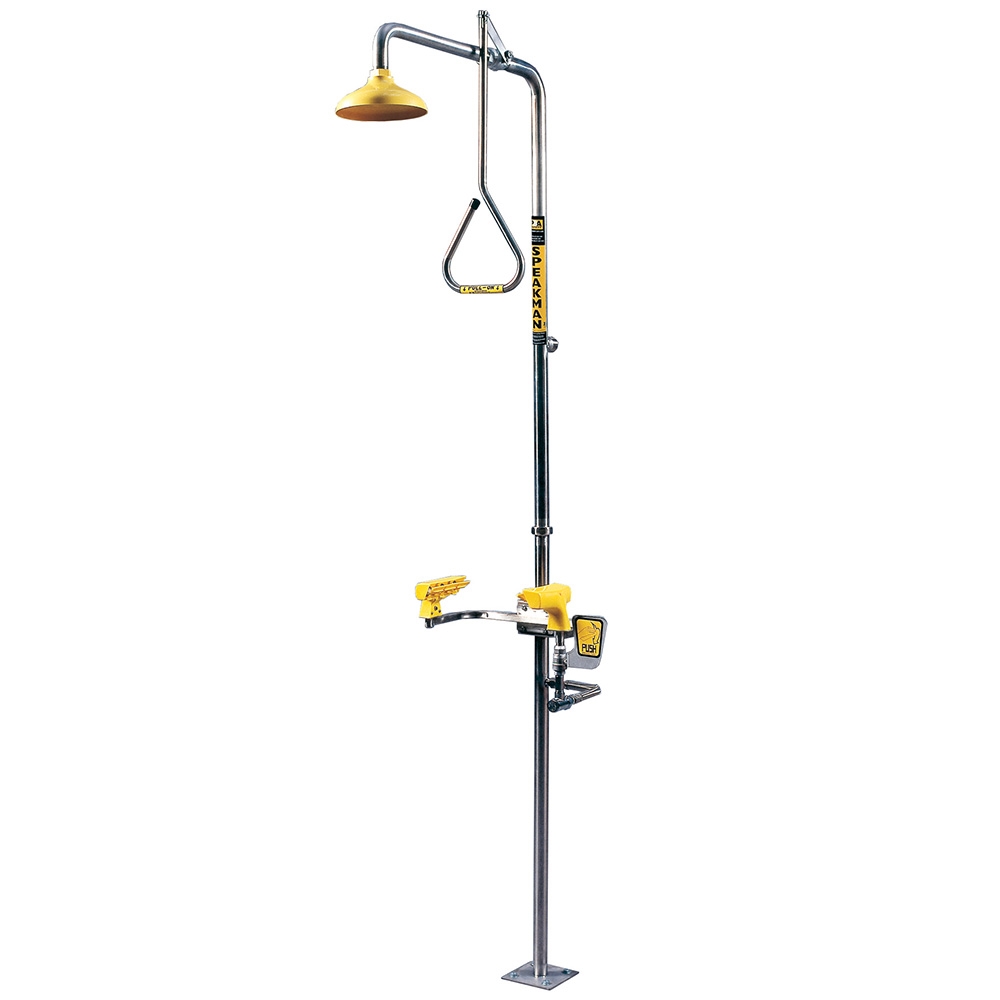

All traditional series combination stations feature a high performance emergency shower head and a 1-1/4" DuraJade powder coated stanchion. The Speakman® Traditional Series SE-685 Combination Emergency Station with eye/face wash features a stay open ball valve, allowing hands free operation once the shower has been activated and an SE-685 eye/face wash, without a bowl.
- Independent laboratory accreditation to the Australian Standard Requirements
- Made to withstand even the most hardy of working environments
- Showers should be placed within 10sec of the possible injury point
- Water supply is also a key factor for installation
SHOWERHEAD: 8” Dia. CYCOLAC Yellow Plastic
FLOW CONTROL: Internal 20 GPM Restrictor
VALVE: 1” NPT Female Brass, Chrome-Plated. Full Flow Stay-Open Ball Valve
ACTIVATOR: Aluminum Triangular Pull Rod
STANCHION: 1-1/4” IPS Steel Piping with Brass Fittings
INLET & WASTE: 1-1/4” NPT Female
FLOOR FLANGE: Brass Casting with (3) 17/32” Dia. Mounting Holes on 9” Dia. Bolt Circle, Spaced 120° apart
EMERGENCY SIGN: 7-7/8” x 12” Plastic Wall Sign
Compliance:
- Complies to AS4775:2007
- Certified to ANSI/ISEA Z358.1
